> For the complete documentation index, see [llms.txt](https://interfacing.gitbook.io/interfacing-help-files/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://interfacing.gitbook.io/interfacing-help-files/interfacing-help-files-fr/analystes-de-processus/business-process-management/creating-and-editing-process-diagrams/mapping-a-process/editing-bpmn-properties-for-objects-and-flows/events.md). # Events Configure properties to define the event type, characteristic, and subtype, which determine when and how a process responds. An **event** represents a key occurrence in a process. It may start the process, affect its flow, or bring it to an end. Each event can be defined by: * **Type** — its position and role in the process lifecycle * **Characteristic** — how it behaves when triggered * **Subtype** — the specific trigger or outcome *** ## Event Types Event types define **where** in the process lifecycle the event occurs.

	What It Is	What It Looks Like
Start Event	Marks the beginning of a process.
Intermediate Event	Occurs between the start and end of a process.
End Event	Marks the completion of a process.

{% hint style="info" %} While event types are not BPMN properties themselves, they determine **which properties** are available for configuration. To select an event type, drag the corresponding event shape from the panel into your diagram. {% endhint %} *** ### Event Characteristics Event characteristics define **how** an event behaves when it is triggered. > **Note:** If an event already has incoming or outgoing **sequence flows**, its characteristic cannot be changed. BPMN distinguishes events by two main behavioral characteristics: #### 1. Catching vs. Throwing

	What It Is	What It Looks Like

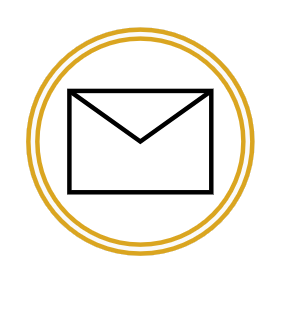

Catching	A catching event is triggered by an external condition or signal. It waits for something to happen before proceeding. Example: Receiving an email.

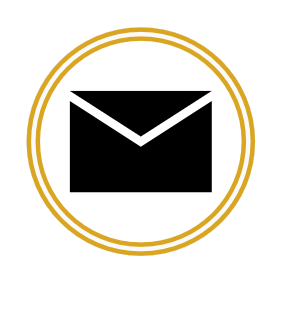

Throwing	A throwing event is initiated by the process itself. It does not require an external trigger—it actively causes an action to occur. Example: Sending an email.

What It Is

What It Looks Like

Catching

A catching event is triggered by an external condition or signal. It waits for something to happen before proceeding.

Example: Receiving an email.

Throwing

A throwing event is initiated by the process itself. It does not require an external trigger—it actively causes an action to occur.

Example: Sending an email.

#### 2. Interrupting vs. Non-Interrupting

	What It Is	What It Looks Like
Interrupting	An interrupting event stops the ongoing activity or subprocess when triggered. It is represented with a solid outline.
Non-Interrupting	A non-interrupting event allows the process to continue even after it is triggered. It is represented with a dotted outline.

*** ### Summary — Event Types & Allowed Characteristics The table below shows which event characteristics are available for each event type.

Event Type	Event Characteristic
Start	Catching – Interrupting, Catching – Non-Interrupting
Intermediate	Catching – Interrupting, Catching – Non-Interrupting, Throwing – Interrupting
End	Throwing

*** ## Event Subtypes Event subtypes define the **specific trigger** (for start/intermediate events) or **result** (for end events).

	What It Is	What It Looks Like
Message	A message event represents any type of communication, such as a letter, email, or phone call.
Timer	A timer event represents a specific time or date, such as a countdown, deadline, or scheduled start time.
Escalation	An escalation event indicates that an activity must be raised to a higher authority. It is often used in event subprocesses to signal priority handling.
Conditional	A conditional event represents a situation where a specific condition or rule must be met before the process can continue.
Link	A link event connects sections of a process diagram or links a parent process to a subprocess, replacing sequence flows. It is particularly useful in multi-page diagrams.
Error	An error event represents a problem or fault in the process, allowing for corrective or alternative actions to be taken.
Cancel	A cancel event indicates the termination of a transaction or activity before its completion.
Compensation	A compensation event represents the failure or reversal of an activity that requires reimbursement or corrective action.
Signal	A signal event represents a broadcast notification sent without a specific recipient, making it accessible to multiple participants.
Multiple	A multiple event represents a situation where any one of several possible triggers may initiate the event.
Parallel Multiple	A parallel multiple event represents a situation where several triggers must occur simultaneously to initiate the event.
Terminate	A terminate event immediately ends the process, stopping all ongoing activities regardless of their current state.

*** ### Summary — Event Subtype Availability The table below lists which event subtypes are supported for **Start**, **Intermediate**, and **End** events.

Event Subtype	Start	Intermediate	End
Message	✅	✅	✅
Timer	✅	✅	❌
Escalation	✅	✅	✅
Conditional	✅	✅	❌
Link	✅	✅	✅
Error	❌	✅	✅
Cancel	❌	✅	✅
Compensation	❌	✅	✅
Signal	✅	✅	✅
Multiple	✅	✅	✅
Parallel Multiple	✅	✅	❌
Terminate	❌	❌	✅
